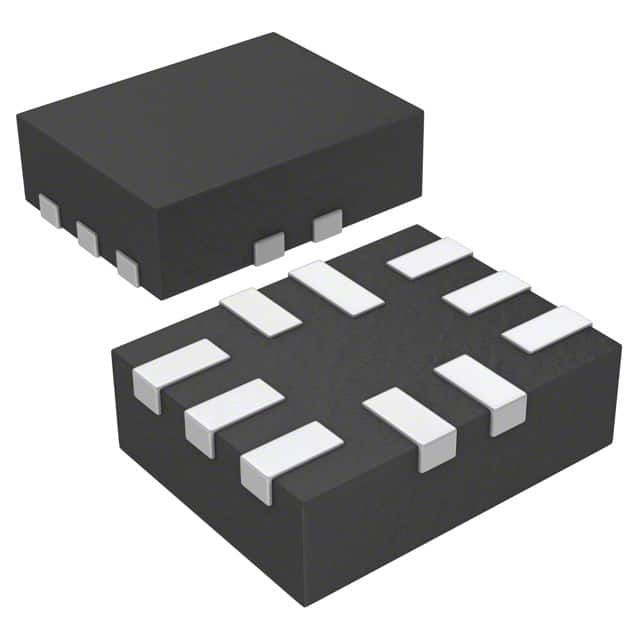

DG2735ADN-T1-GE4

Name: DG2735ADN-T1-GE4
Brand: Sensor (HK) Limited
Availability: InStock

All Products

MCU IC
(217)

FFC FPC Connectors
(3667)

Clock Fanout Buffer
(2459)

Audio Special Purpose
(1050)

Data Acquisition ICS
(1000)

Embedded ICS
(1000)

Interface ICS
(1000)

Linear IC
(950)

Logic IC
(894)

Memory IC
(984)

Power Management
(939)

RF And Wireless
(995)

Temperature Sensors IC
(1000)

Frequency Multipliers
(934)

Circuit Protection IC
(992)

Discrete Semiconductor
(911)

Polymer Capacitors
(700)

Ultrasonic Sensors
(1000)

Integrated Circuits IC
(1000)

Circuit Protection
(692)

Opto Electronics
(1000)

Coaxial Connectors
(400)

Discrete Semiconductor Products
(853)

Murata Ceramic Filters
(757)

Inductors Coils Chokes
(950)

MIL Spec Connectors
(890)

Integrated Circuits ICs
(27)

I'm Online Chat Now

Product Details: Payment & Shipping Terms:

Description:	IC SW SPDTX2 500MOHM 10MINIQFN

Contact Now

Description

Category:	Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers	Channel-to-Channel Matching (ΔRon):	60mOhm
-3db Bandwidth:	50MHz	Operating Temperature:	-40°C ~ 85°C (TA)
Package / Case:	10-UFQFN	Switch Time (Ton, Toff) (Max):	78ns, 58ns
Current - Leakage (IS(off)) (Max):	2nA	Voltage - Supply, Dual (V±):	-
Multiplexer/Demultiplexer Circuit:	2:1	Package:	Tape & Reel (TR) Cut Tape (CT) Digi-Reel®
Channel Capacitance (CS(off), CD(off)):	55pF	Voltage - Supply, Single (V+):	1.65V ~ 4.3V
Switch Circuit:	SPDT	Number Of Circuits:	2
Product Status:	Active	Mounting Type:	Surface Mount
Series:	-	Crosstalk:	-70dB @ 100kHz
On-State Resistance (Max):	500mOhm	Supplier Device Package:	10-miniQFN (1.4x1.8)
Charge Injection:	-	Mfr:	Vishay Siliconix
Base Product Number:	DG2735
