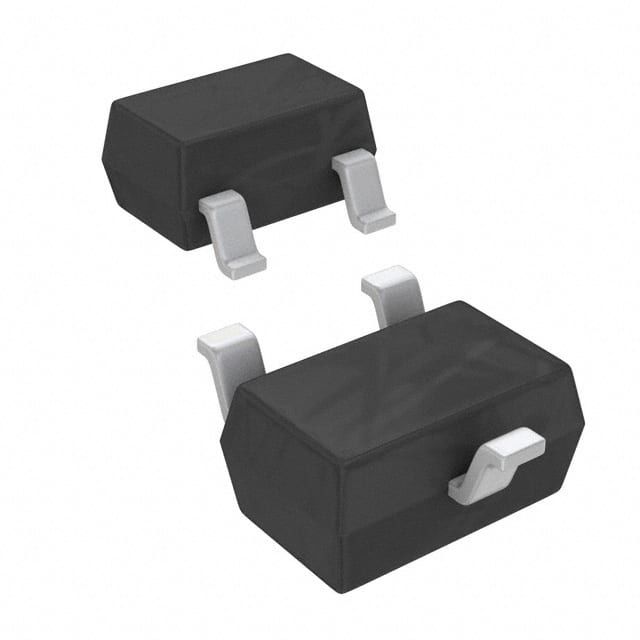

BSS223PW L6327

Name: BSS223PW L6327
Brand: Sensor (HK) Limited
Availability: InStock

All Products

MCU IC
(217)

FFC FPC Connectors
(3667)

Clock Fanout Buffer
(2459)

Audio Special Purpose
(1050)

Data Acquisition ICS
(1000)

Embedded ICS
(1000)

Interface ICS
(1000)

Linear IC
(950)

Logic IC
(894)

Memory IC
(984)

Power Management
(939)

RF And Wireless
(995)

Temperature Sensors IC
(1000)

Frequency Multipliers
(934)

Circuit Protection IC
(992)

Discrete Semiconductor
(911)

Polymer Capacitors
(700)

Ultrasonic Sensors
(1000)

Integrated Circuits IC
(1000)

Circuit Protection
(692)

Opto Electronics
(1000)

Coaxial Connectors
(400)

Discrete Semiconductor Products
(853)

Murata Ceramic Filters
(757)

Inductors Coils Chokes
(950)

MIL Spec Connectors
(890)

Integrated Circuits ICs
(27)

I'm Online Chat Now

Product Details: Payment & Shipping Terms:

Description:	MOSFET P-CH 20V 390MA SOT323-3

Contact Now

Description

Category:	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs	Gate Charge (Qg) (Max) @ Vgs:	0.62 NC @ 4.5 V
Product Status:	Obsolete	Mounting Type:	Surface Mount
Package:	Tape & Reel (TR) Cut Tape (CT) Digi-Reel®	Input Capacitance (Ciss) (Max) @ Vds:	56 PF @ 15 V
Series:	OptiMOS™	Vgs (Max):	±12V
Vgs(th) (Max) @ Id:	1.2V @ 1.5µA	Supplier Device Package:	PG-SOT323
Rds On (Max) @ Id, Vgs:	1.2Ohm @ 390mA, 4.5V	Mfr:	Infineon Technologies
Operating Temperature:	-55°C ~ 150°C (TJ)	FET Type:	P-Channel
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V	Power Dissipation (Max):	250mW (Ta)
Package / Case:	SC-70, SOT-323	Drain To Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	390mA (Ta)	Technology:	MOSFET (Metal Oxide)
FET Feature:	-
