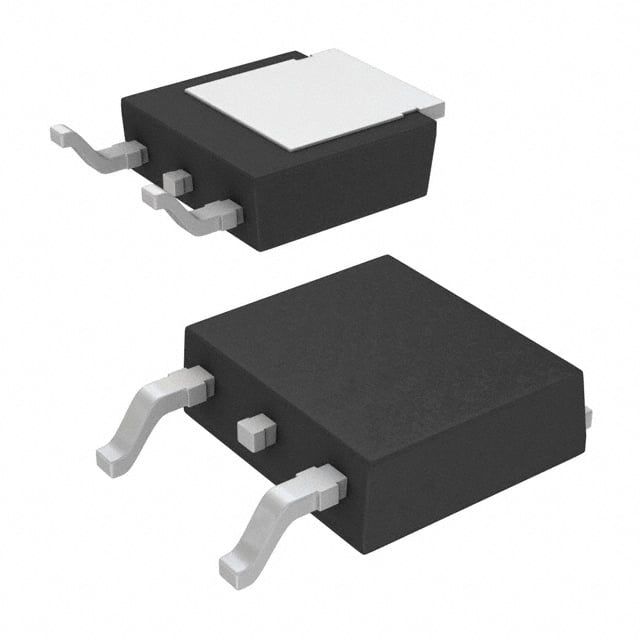

Large Image : IRFR3707Z

Product Details: Payment & Shipping Terms:

Description:	MOSFET N-CH 30V 56A DPAK

Contact Now

Description

Category:	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs	Gate Charge (Qg) (Max) @ Vgs:	14 NC @ 4.5 V
Product Status:	Obsolete	Mounting Type:	Surface Mount
Package:	Tube	Input Capacitance (Ciss) (Max) @ Vds:	1150 PF @ 15 V
Series:	HEXFET®	Vgs (Max):	±20V
Vgs(th) (Max) @ Id:	2.25V @ 250µA	Supplier Device Package:	D-Pak
Rds On (Max) @ Id, Vgs:	9.5mOhm @ 15A, 10V	Mfr:	Infineon Technologies
Operating Temperature:	-55°C ~ 175°C (TJ)	FET Type:	N-Channel
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V	Power Dissipation (Max):	50W (Tc)
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63	Drain To Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	56A (Tc)	Technology:	MOSFET (Metal Oxide)
FET Feature:	-
