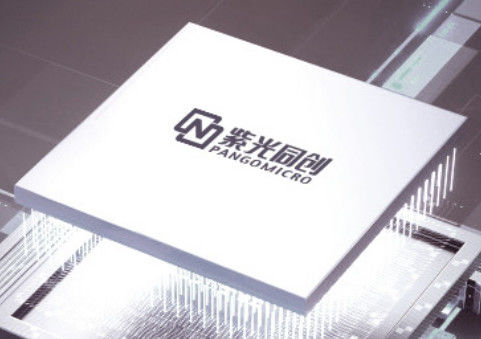

PGL12G

PGL12G is a low-power, cost-effective FPGA product. Below are some of its key parameters and features:

I. Basic Parameters

• Process: Utilizes 40nm CMOS technology, a mature and low-power consumption process node.
• Core Voltage: As low as 1.1V, contributing to further power reduction.

II. IO Characteristics

• Number of User IOs: Supports up to 308 user IOs, catering to the needs of complex designs.
• Voltage Standards: Supports multiple voltage standards including 1.2V, 1.5V, 1.8V, 2.5V, and 3.3V, adapting to various interfaces and circuit requirements.
• Interface Standards: Compatible with multiple interface standards such as HSTL, SSTL, mipiD-PHY, LVDS, MINI-LVDS, SUB-LVDS, SLVS, TMDS, ensuring compatibility with various peripherals and storage devices.

III. Configurable Logic Modules (CLMs)

• Structure: Each CLM comprises 4 multi-function LUT5s (Look-Up Tables) and 6 registers, offering flexible logic configuration capabilities.
• Features: Supports fast carry-lookahead arithmetic logic, distributed RAM modes, and cascade chains, enhancing the FPGA's computational and data processing capabilities.

IV. Memory Resources

• DRM (Dedicated RAM Modules): Provides 18Kb of storage space, configurable as two independent 9Kb blocks. Supports various operating modes including single-port RAM, dual-port RAM, simple dual-port RAM, ROM, and FIFO modes, meeting diverse storage needs across applications.
• Distributed RAM and Block RAM: Offers a certain amount of distributed RAM and block RAM resources for storing temporary data and implementing complex logic functions.

V. Hardcore Resources

• Memory Controller (HMEMC): Integrated memory controller for efficient data exchange with external memory devices.
• Analog-to-Digital Converter (ADC): Integrated ADC module for converting analog signals to digital signals, suitable for applications requiring analog signal processing.

VI. Other Features

• Configuration Modes: Supports multiple configuration modes for flexible setup based on user requirements.
• Security Features: Provides bitstream encryption and Device ID (UID) functions to protect user designs.
